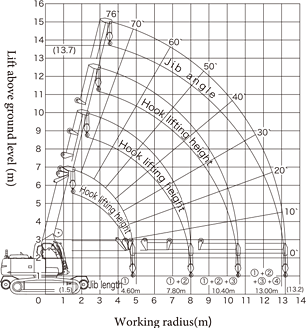

Note: This diagram shows the lifting height under no load without consideration of deflection of the jib.
Operate the crane with a load in the jib angle range of 0° to 76°.
 |
4.6-m boom | 7.8-m boom | 10.4-m boom | 13.0-m boom | ||||
|---|---|---|---|---|---|---|---|---|
| Rated lifting load in stopped state | Rated lifting load in running state | Rated lifting load in stopped state | Rated lifting load in running state | Rated lifting load in stopped state | Rated lifting load in running state | Rated lifting load in stopped state | Rated lifting load in running state | |
| 2.5 | 8,000 | 3,000 | - | - | - | Not allowed |
- | Not allowed |
| 2.7 | 7,600 | 3,000 | 7,000 | 3,000 | - | - | ||
| 3.0 | 7,000 | 3,000 | 7,000 | 3,000 | - | - | ||
3.5 |
5,500 | 2,750 | 5,500 | 2,750 | 4,900 | - | ||
| 4.0 | 4,900 | 2,450 | 4,900 | 2,450 | 4,900 | 3,900 | ||
| 4.5 | 4,150 | 2,075 | 4,250 | 2,125 | 4,300 | 3,900 | ||
| 5.0 | 3,775/4.8m | 1,885/4.8m | 3,650 | 1,825 | 3,650 | 3,650 | ||
| 6.0 | - | - | 2,820 | 1,410 | 2,820 | 2,820 | ||
| 6.5 | - | - | 2,500 | 1,250 | 2,500 | 2,500 | ||
| 7.0 | - | - | 2,250 | 1,125 | 2,250 | 2,250 | ||
| 8.0 | - | - | 1,820 | 910 | 1,820 | 1,820 |
||
| 9.0 | - | - | - | - | 1,550 | 1,550 | ||
| 10.0 | - | - | - | - | 1,320 | 1,320 | ||
| 10.6 | - | - | - | - | 1,220 | 1,220 | ||
| 11.0 | - | - | - | - | - | 1,160 | ||
| 12.0 | - | - | - | - | - | 1,020 | ||
| 13.0 | - | - | - | - | - | 920 | ||
| 13.2 | - | - | - | - | - | 900 | ||
• A load is hung with four wires in all cases.
• The load which can be actually lifted is the difference obtained by subtracting the weight of the hook and hanging tools, such as slinging wire ropes (hook weight: 80 kg), from the rated total load.
• It is prohibited to lift a load while running on the track.

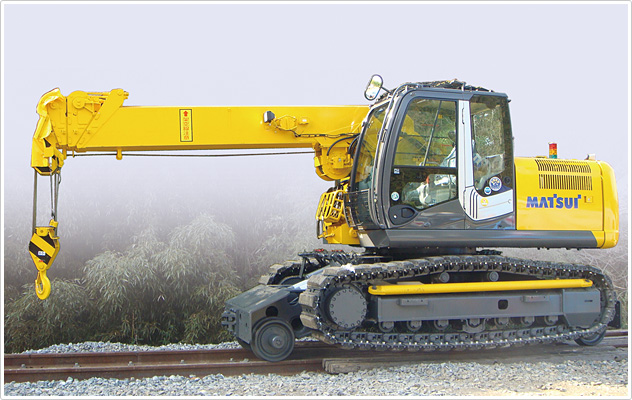

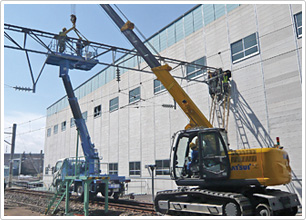

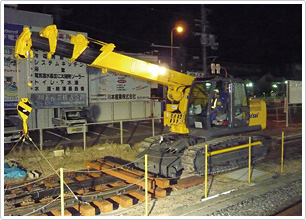

| Item | MWR160TX |
|---|---|
| Specifications | |
| Base vehicle | Hitachi TX160 |
| Total working weight (kg) | 21,500 |
| Type of track roller | Rubber insulated shoe |
| Fuel tank (L) | 320 |

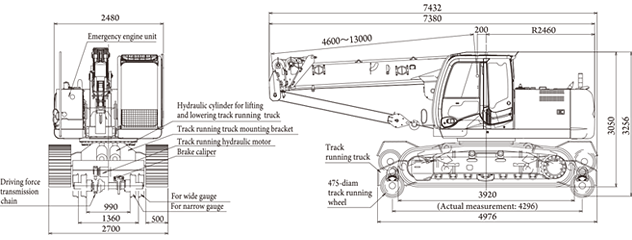

| Dimensions | |
| Overall length (during transportation) (mm) | 7,432 |
| Overall width (mm) | 2,700 |
| Overall height (on track) (mm) | 3,256 |
| Swing radius (mm) | 2,460 |
| Overall length of crawler (mm) | 3,920 |
| Performance | |
| Boom length (m) | 4.6~13.0 |
| Max. lifting load × working radius (t×mm) | 8.0×2,500 |
| Max. working radius (mm) | 13,200 |
| Max. lift above ground level (mm) | 13,700 |
| Max. lift below ground level (mm) | 18,000 |
| Swing range (degrees) | 360 |
| Swing speed (rpm) | 2.0 |
| Max. speed of crawler (km/h) | High speed:3.4 |
| Gradability (degrees) | 19.5 |
| Ground contact pressure (kgf/cm2) | 0.69 |
| Track running performance | |
| Max. speed (km/h) | 25 |
| Max. gradient at which vehicle can start | 30/1,000 |
| Counterbalance braking distance (m) | In fine weather: 18 m In wet weather: 25 m |
| Braking distance (m) | In fine weather: 10 m In wet weather: 14 m |
| Item | MWR160TX |
|---|---|
| Engine | |
| Model | Isuzu AI-4JJ1X |
| Type | 4-cycle water-cooled inline direct injection type with turbo |
| Total displacement (cc) | 2,999 |
| Rated output (kW/rpm) | 83/2,000 |
| Hydraulic unit | |
| Type and quantity of hydraulic pumps | Duplex variable capacity type axial piston pump + duplex gear pump |
| Hydraulic pump discharge (L/min) | 226 |
| Max. set pressure (kgf/cm2) | 350 |
| Type and quantity of control valves | 9-spool valve, 1 pc. + 1-spool valve, 1 pc. + 3-spool valve, 1 pc. |
| Operation method | Hydraulic assist + electrical assist |
| Crawler running motor | Variable piston type |
| Crane unit | |
| Boom | 4 stages/8.0 t |
| Rated lifting load (t) | 8.0 |
| Crane safety devices | Overload prevention device, over-winding prevention device, load indicator, level board, working range limiting device, inclination warning device and wire irregular winding prevention device |
| Track running equipment | |
| Wheel | Diameter: 475mmWidth: 125mm, wheel back to back gauge: 990mm (narrow gauge), 1,360mm (standard gauge), 4 insulated wheels |
| Axle | 2 axles (diameter 110 mm), 1 axle drive Distance between axles: 4,300mm |
| Motive power source | Hydraulic motor with counterbalance valve (output 96 kW, torque 1,530 N.m), 2 units |
| Drive | Chain driving system for each axle |
| Brake | Hydraulic disc brake for each axle (braking torque: 2,940N/m) + counterbalance valve for each axle, with parking braking system and escape lash prevention device |
| Safety devices in track | |
| Emergency engine | Air-cooled 4-cycle 3-cylinder diesel engine (1429 cc, 30 ps) |
| Boom height limits | automatic stop of boom |
| Boom insulation | High voltage plastic sheet for electrical use (withstand voltage: 7000 V) |
| Other safety devices | Hydraulic motor release clutch, hydraulic motor free valve, front and rear lamps, flasher, connecting hole, coupling rod and back monitor |
