Chain saw cutter (tree felling machine)
Home > Products > Chain saw cutter (tree felling machine) MTC-01

Chain saw cutter (tree felling machine) MTC-01

Features
See PDF Back to list

Easy and safe felling using a power shovel

  • The cutter installed on a power shovel ensures easy and quick felling of trees.
  • Trees having a diameter of up to about 400 mm can be cut.
  • Since cut branches can be held with the claws, you can work safely without worrying about accidents caused by drop of cut branches.

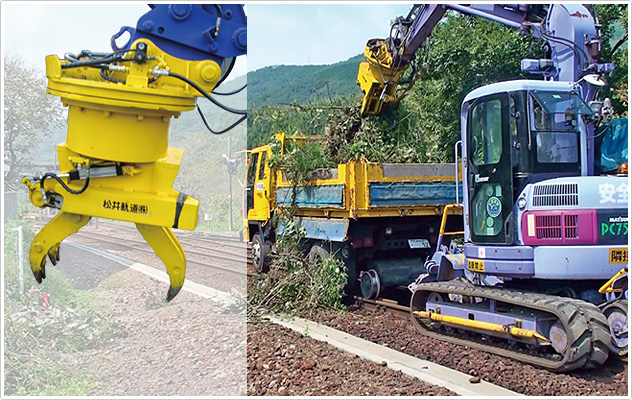

Chain saw cutter (tree felling machine)
Chain saw cutter (tree felling machine)

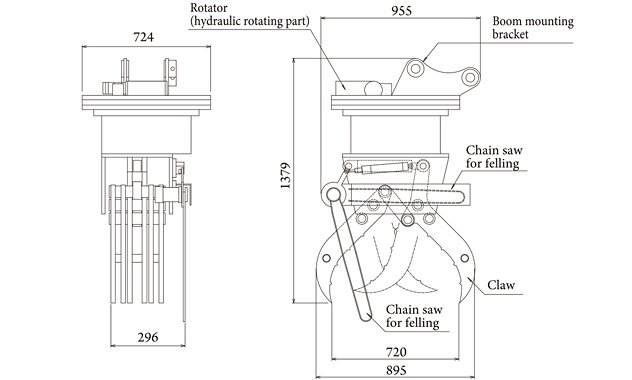

Major dimensions

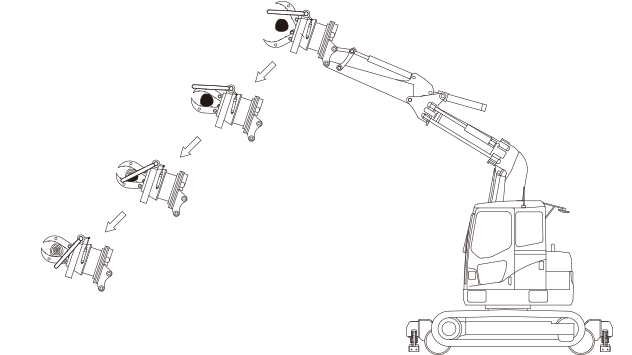

Outline of felling work
Outline of felling work
Principal specifications
Item MTC-01
Specifications
Overall length × width × height (mm) 955×724×1,380
Max. diameter of tree to be cut (mm) φ400
Total weight of body (kg) 560
Max. working hydraulic pressure (kgf/cm2) 210
Applicable heavy equipment Road-rail power shovel (applicable class: 0.25~0.45m3)
Drive system
Rotation of blade of chain saw for felling Hydraulic motor
Swing of chain saw for felling Hydraulic cylinder
Opening/closing of claw Hydraulic cylinder
Swing rotator Hydraulic motor/worm gear
