8 tool tie tamper attachment MTPA080H

Features
See PDF Back to list

Easy track maintenance by using road-rail power shovel

  • Tamping can be performed at a remarkably high efficiency by installing the attachment to a road-rail power shovel.
  • Sufficient tamping effect can be obtained with the aid of the machine vibration, hydraulic power and special tie tamper teeth.
  • A road-rail power shovel can be used for various purposes, thereby reducing the operating time.

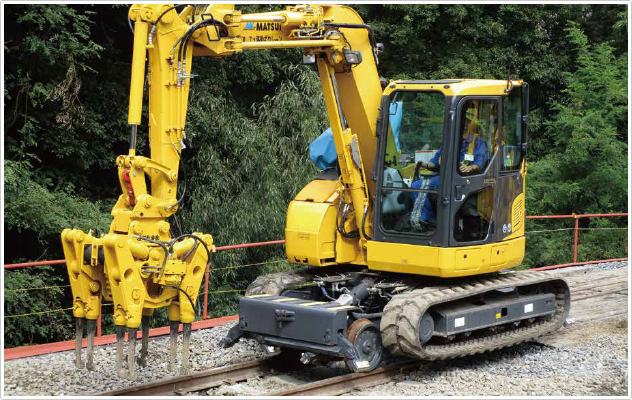

8 tool tie tamper attachment
8 tool tie tamper attachment
Moving image

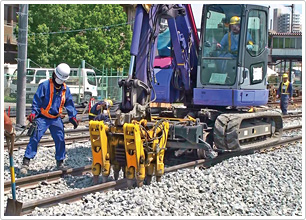

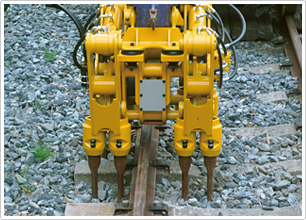

Examples of work

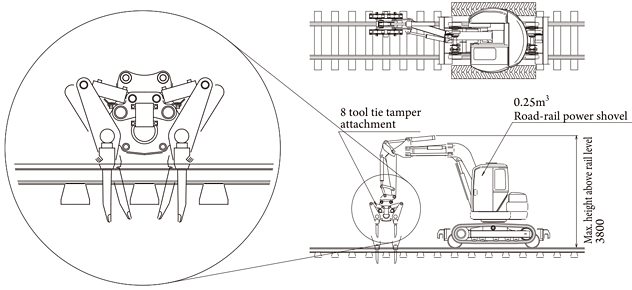

Outline of construction
Outline of construction

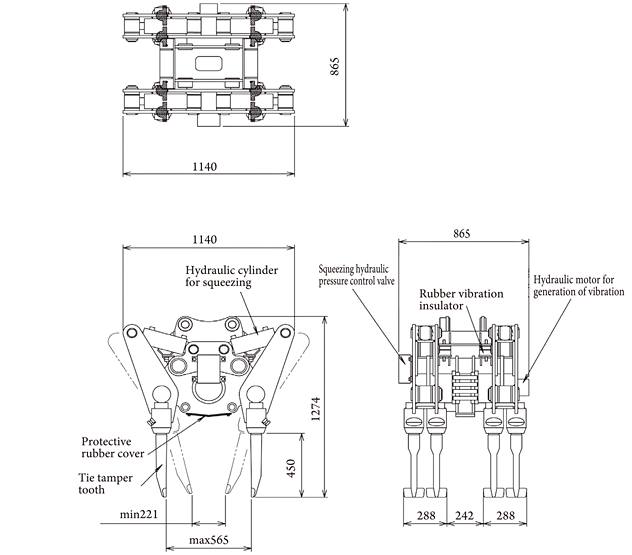

Major dimensions
Major dimensions
Principal specifications
Item MTPA080H
Specifications
Overall length × width × height (mm) 1,140×865×1,275
Total weight of body (kg) 950
Construction method Tamping of sleepers one by one under one of rails
Max. tamping depth (mm) Approx. 250 deep from underside of sleeper
Vibration force (N) 34,000
Vibration frequency (Hz) 30~35
Amplitude (mm) 3.0
Min. required amount of oil (ℓ/min) 35+50
Max. working hydraulic pressure (kgf/cm2) 210
Applicable heavy equipment Road-rail power shovel
(applicable class: 0.25m3, with boom offset mechanism)
